Before
Historic Preservation Case Study • Twinsburg, Ohio
Riley House Exterior Restoration
A preservation-focused exterior project documenting severe coating failure, exposed historic wood, vulnerable joints, aging trim, detailed preparation, and the completed restoration of this 1853 property.
Riley HouseHistorical Restoration
After
Preserving history. Restoring beauty.
Initial Condition
This was not a routine repaint.
The Riley House showed widespread exterior coating failure across its historic wood siding and architectural details. Large areas had lost adhesion, leaving weathered substrate exposed. Windows, trim transitions, siding joints, chimney-adjacent surfaces, and previously patched areas required close examination before any coating work could be treated as a normal production repaint.
On an older structure, preparation is also investigation. Every loose edge, open joint, soft area, failed repair, and moisture pathway can change the restoration plan. The objective is not simply to make the building look newly painted. The objective is to stabilize vulnerable surfaces, protect historic material where practical, and create a coating system that respects the condition of the structure beneath it.

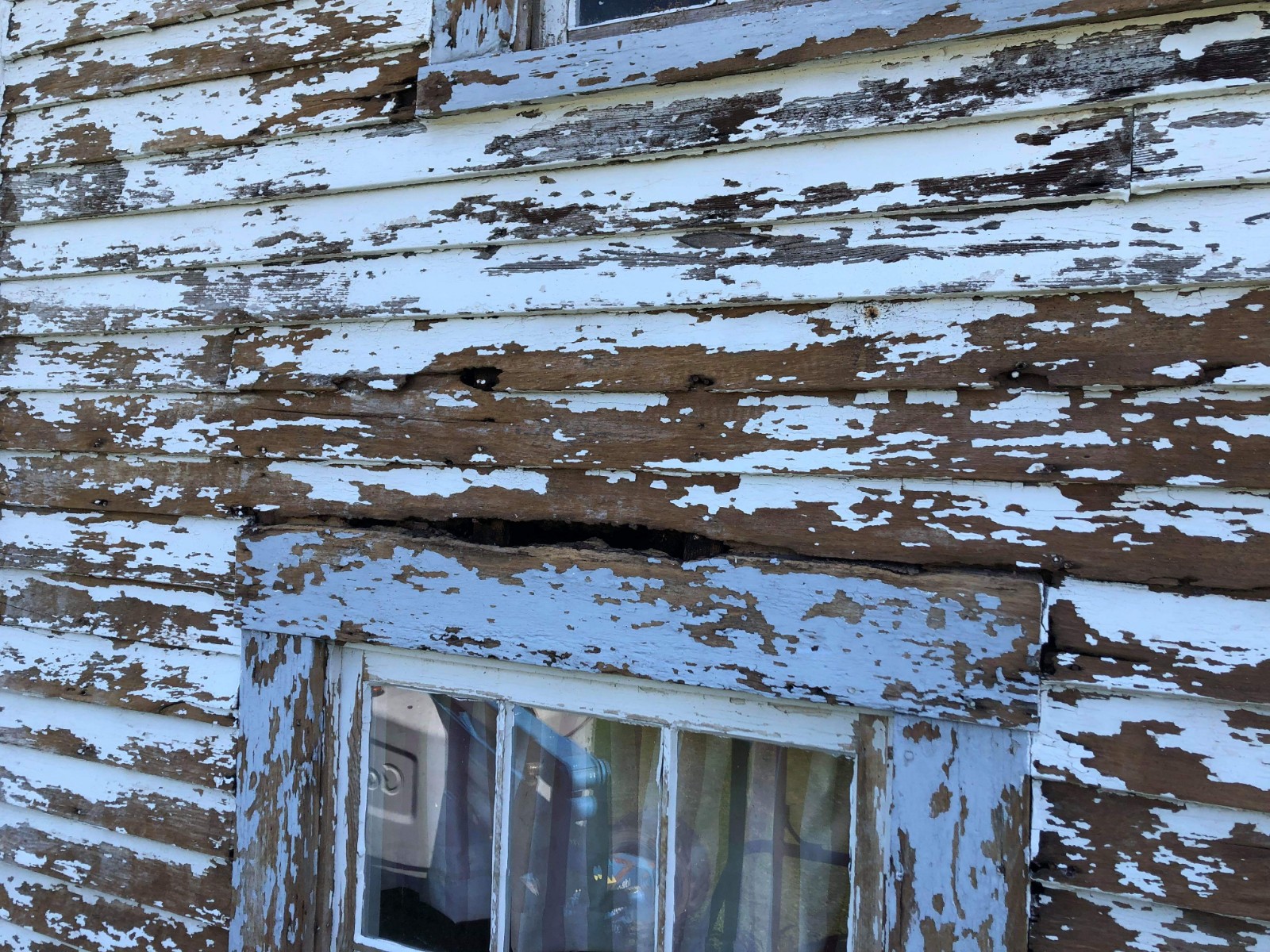

Advanced peeling and loss of adhesion across broad siding areas
Exposed and weathered wood requiring preservation-minded preparation

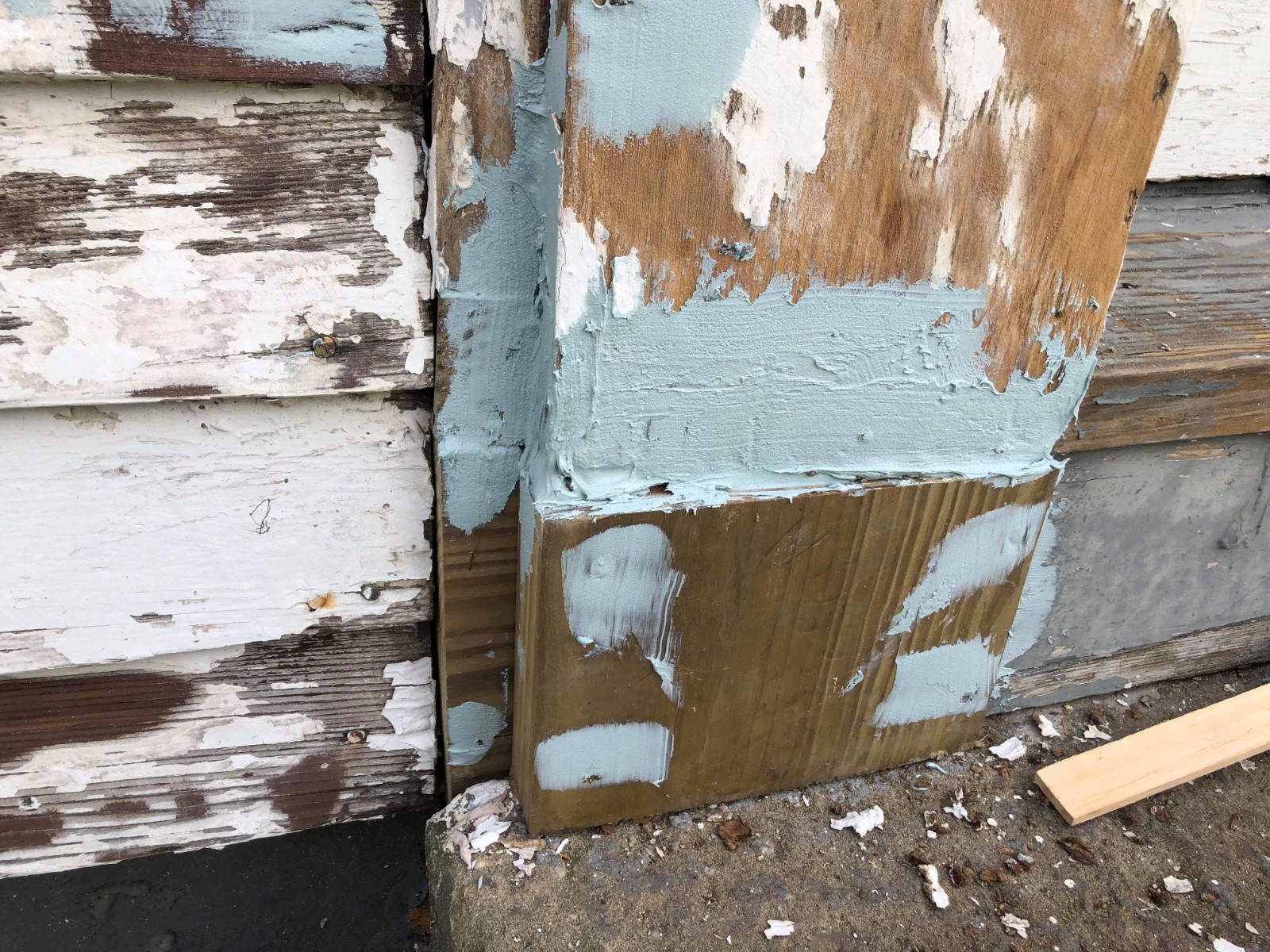

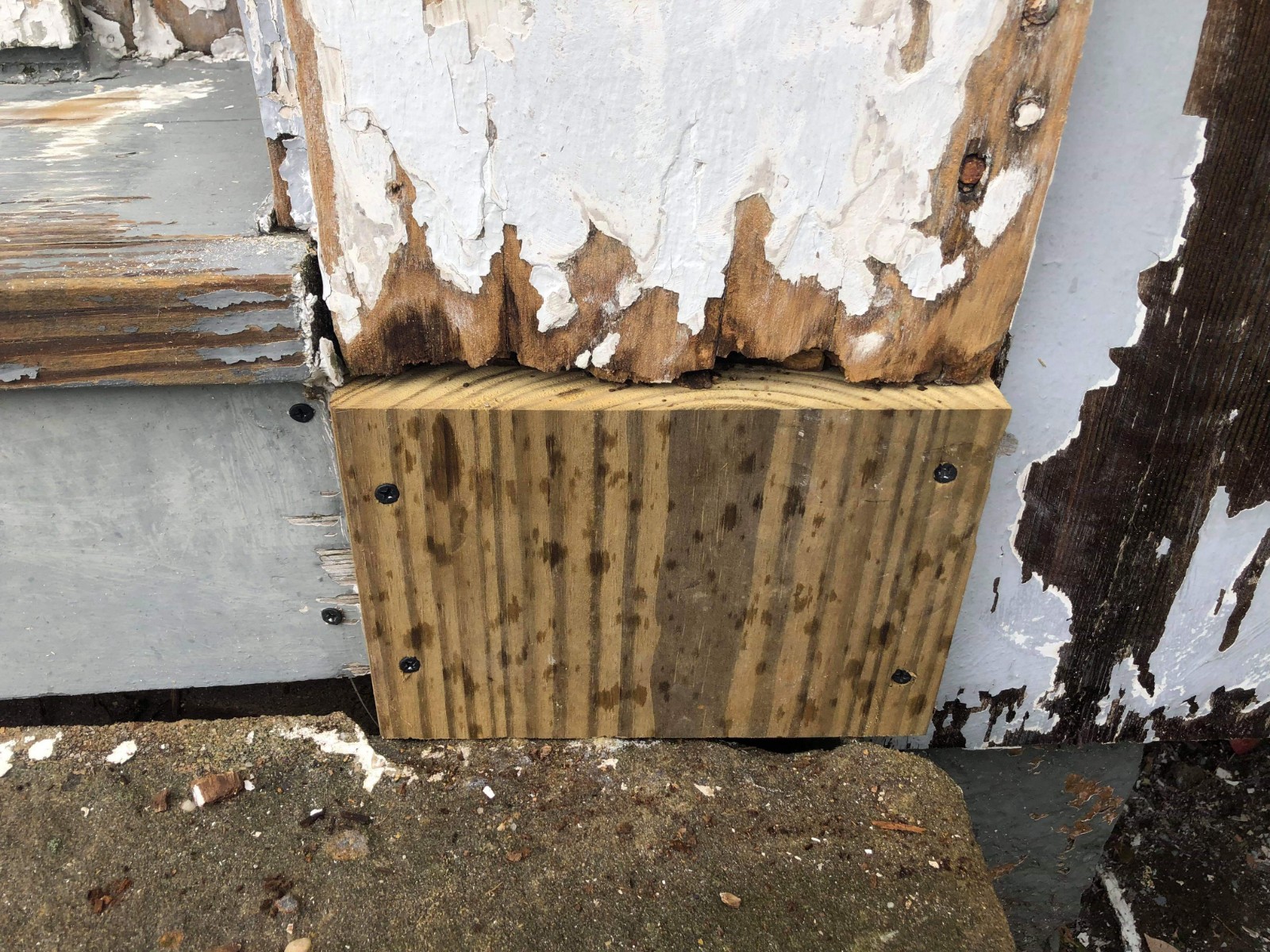

Deteriorated window trim, corners, joints, and prior repair locations

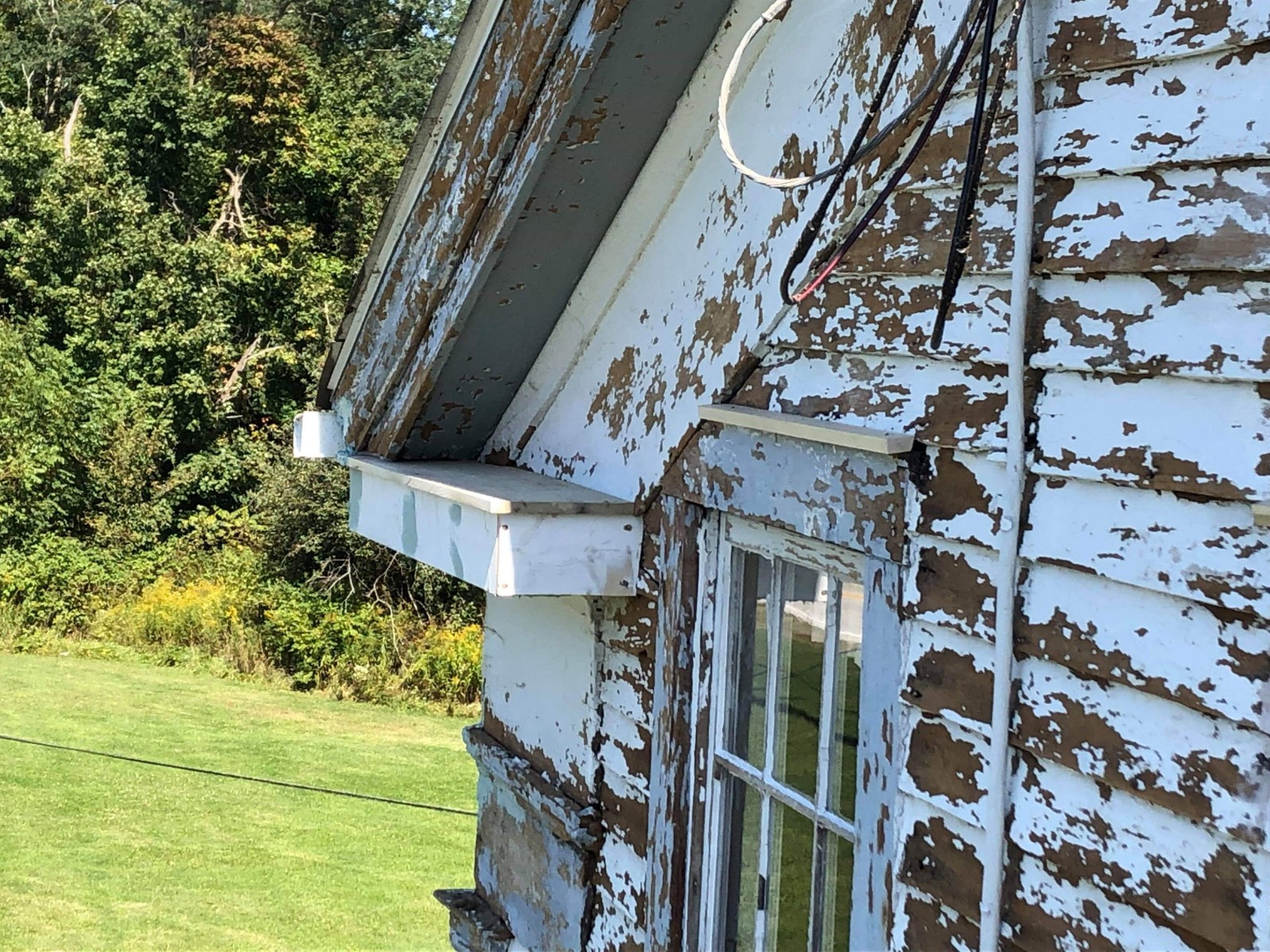

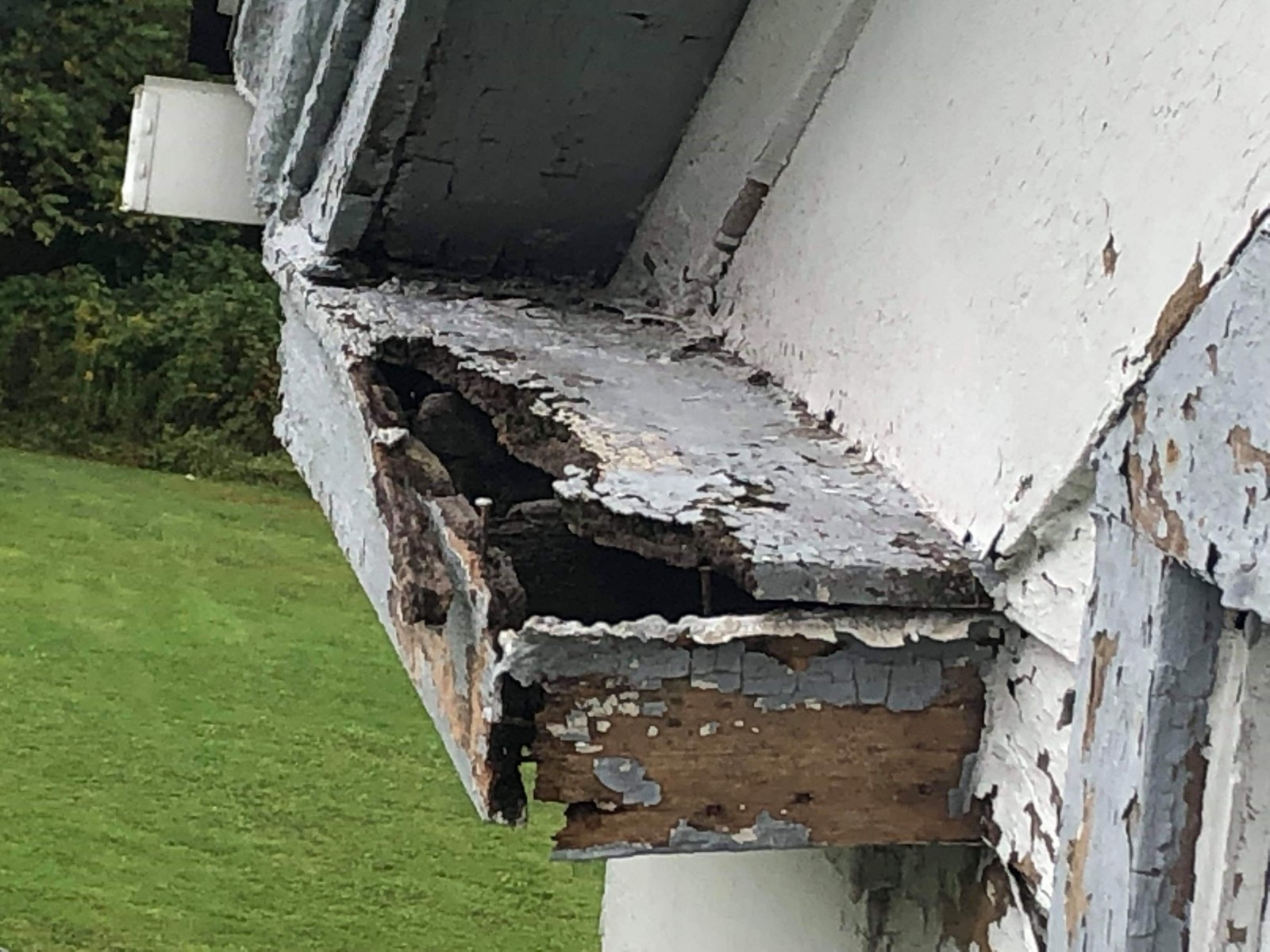

High-detail conditions around the chimney, roofline, gables, and architectural trim
Unforeseen conditions requiring continuous communication with the property trustees
Project Photo Gallery
From severe coating failure to completed restoration
Select any photograph to open the full-screen gallery. Use the arrows, swipe, or your keyboard to move through the project in sequence.
Photography credit: Every Riley House photograph shown here was taken by Denny Smith of Spray GenX LLC as original project and field documentation. The Twinsburg Historical Society hosts copies of the photographs on its project page.
Complete project sequence
Before, preparation, progress, and finished work
Overall exterior condition
Window and siding condition
Exterior condition detail
Front elevation condition
Restoration progress
Historic wood preparation
Detailed restoration work
Chimney and siding detail
Restoration progress view
Completed exterior
Finished architectural detail

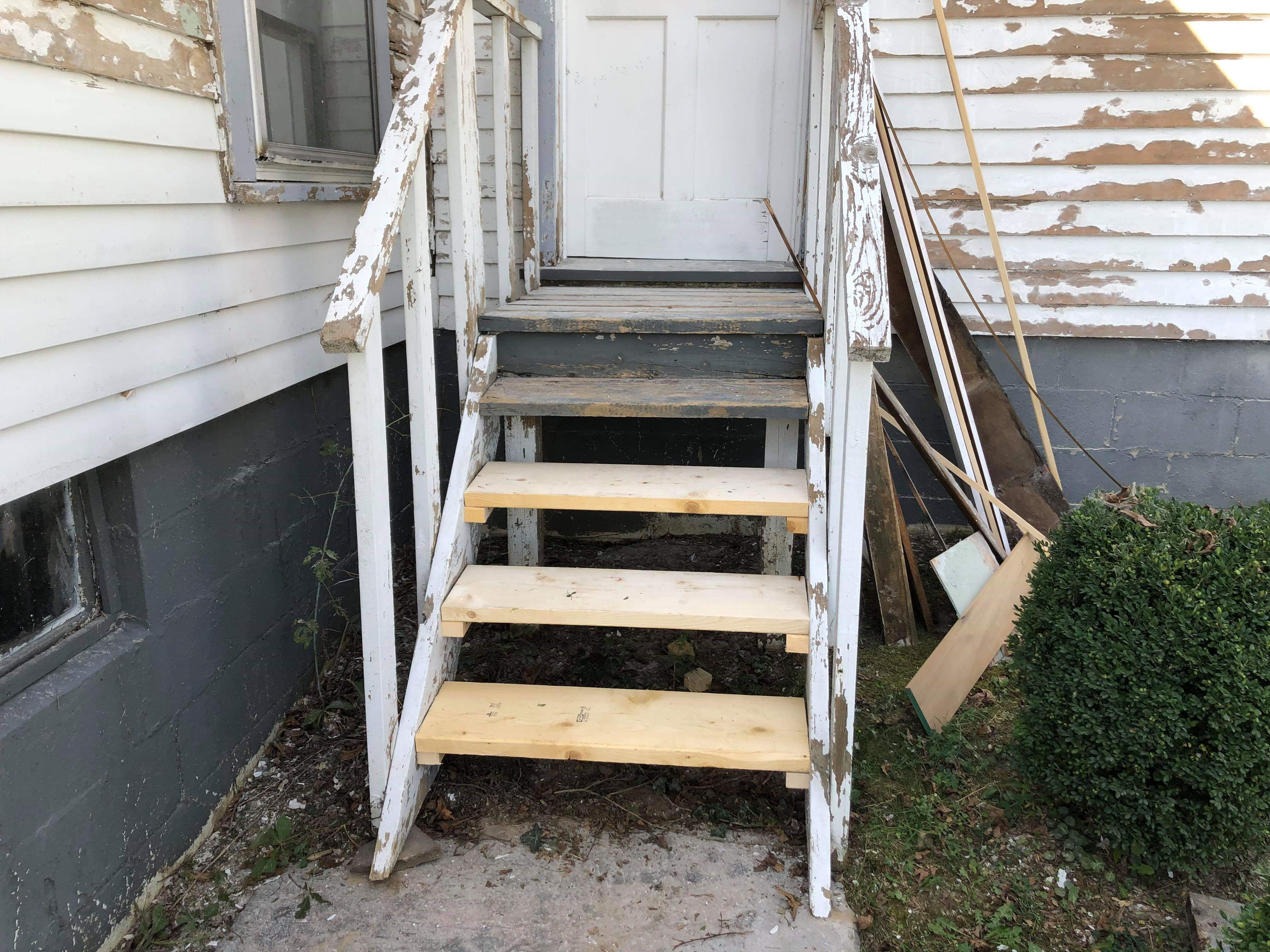

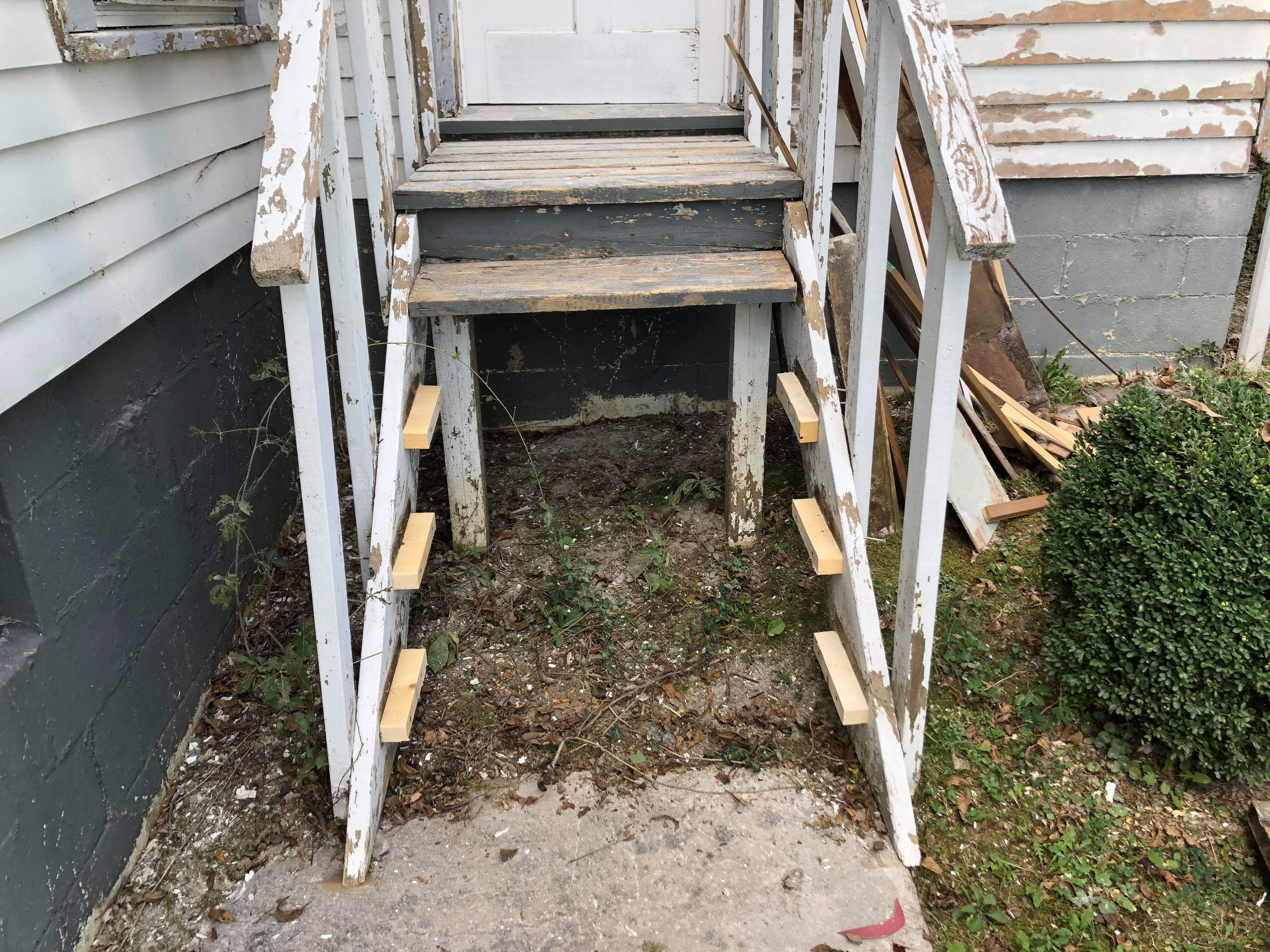

Completed porch area
Finished Riley House
Tap any photograph to open the full-screen viewer. Swipe or use the arrows to move through the complete project without leaving this page.
Restoration Standard
Three principles guiding the work
Document before covering
Condition records preserve the reasoning behind repairs and help owners understand what was discovered as preparation advanced.
Prepare to the substrate
Coating success depends on the actual condition of the wood, joints, repairs, and moisture pathways—not merely the appearance of the remaining paint.
Communicate discoveries
Historic work frequently reveals unforeseen conditions. Timely owner communication protects the project, schedule, and preservation priorities.
Historic Exterior Restoration
Preservation work requires more than a fresh coat.
Spray GenX provides condition assessment, detailed preparation, restoration painting, and project documentation for historic and severely weathered properties across Northeast Ohio.
